din rail Type three Phase digital energy meter

Name: din rail Type three Phase digital energy meter
Brand: YOMIN
Price: 21.68 USD

Buy cheap din rail Type three Phase digital energy meter product

Place of Origin : Zhejiang, China

Brand Name : YOMIN

Model Number : YEM021JC-N2

Display Type : Analog Only

Phase : Three Phase

Measuring Energy Range : 5(30)A ,10(50)A, 20(100)A

Accuracy Class : 1

Output Voltage : 127 V, 230 V

Operating Temperature : -20℃~+70℃

Dimensions : 125x88x73mm

Material : PC (Poly Carbonate)

Usage : Active Electric Energy Measurement

Display Mode : LCD 6+1/5+2

Connection Mode : Directly Connection

Color : White

Style : Customized design

Logo : Laser Engrave or Print

Feature : Good Reliability, Small Volume, Ligth Weight, Specious Appearance

Certificate : ISO9001, CE, Rosh

Advantage : Customized size; Convenient Installation

Packaging Details : PE bag+White box+Carton

Port : Ningbo or Shanghai

Supply Ability : 10000 Piece/Pieces per Month din rail energy meter

Price : $21.68 - $22.61/Pieces

Contact Now

High qulity three Phase din rail digital active energy meter

Technical Parameters

Model	Accuracy	Frequency	Size	Material
YEM021JC	1.0	50-60HZ	88x75x73mm	PC
Reference Voltage(V)	Current Specification(A)	Staring Current(A)	Display Mode	Insulation Performence
3x127/220V ,3x230/400V	5(30)A ,10(60)A, 20(100)A	0.02A, 0.04A,0.08A	LCD 6+1/5+2	AC voltage 4kv for 1 minute, 1.2/50us wavefrom impulse voltage 6kv

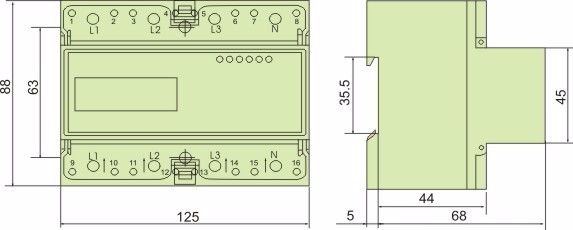

Dimension

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai

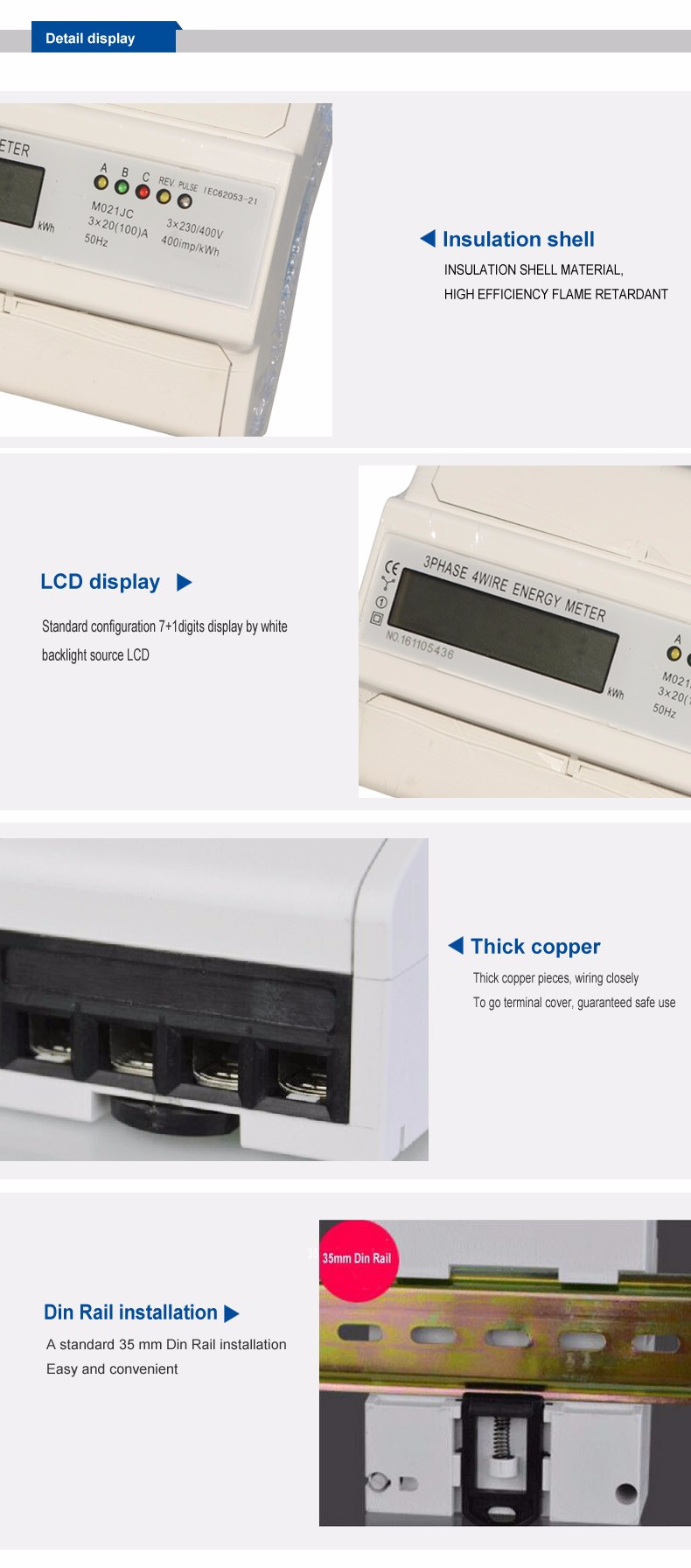

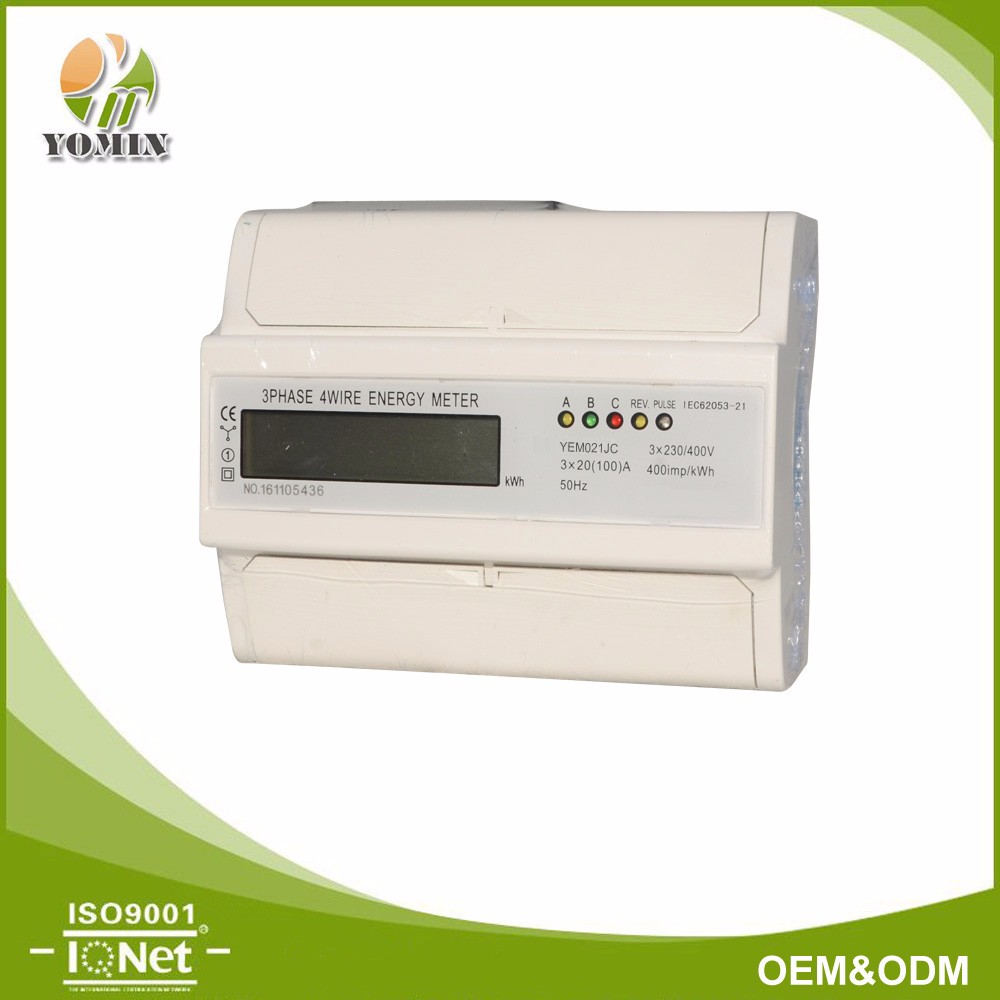

din rail Type three Phase digital energy meter Images
