Single phase mini din rail kwh meter active energy meter
Premium Products
Single phase mini din rail kwh meter active energy meter
1
2
3
4
5
6
Place of Origin :Zhejiang, China
Brand Name :YOMIN
Model Number :YEM015SS
Display Type :Analog Only
Phase :Single Phase, single phase
Measuring Energy Range :0-999999.9kWh
Accuracy Class :1.0
Output Voltage :127V,230V
Operating Temperature :-20℃~+ 70℃
Dimensions :116x17.5x62.5mm
Certificate :CE,Rohs
Type :Din rail type
Rated Current :0-32A
Display :LED Display
Frequency :50HZ/60HZ
Product name :Din rail KWH meter
Rated voltage :220-240
Name :YEM015SS
Model :1 model
Packaging Details :One energy meter in a small box, ten small boxes in a large box. The outer package is covered with bubble wrap. Please state the voltage and frequency you need for the order.For instance:220V/50HZ
Price :$6.53/Pieces 1-9 Pieces
Contact Now
Single phase mini din rail kwh activity meter with pulse output meter reading
Model YEM015SS single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. It has already passed the test of the international authority KEMA. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious appearance, convenient installation, etc.
Features
35mm standard DIN rail installation, complying with standard DIN EN50022.
Single pole width (Modulus 17.5mm), complying with standard DIN43880.
Standard configuration 6+1 digits display (999999.1kWh) by step motor type impulse register.
Standard configuration pulse output passive (polarity),May select distant pulse output passive ( nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard
IEC 62053-31 and DIN 43864.
Bicolor LED instructions power supply state (green) and signal of energy impulse (red).
Automatic detection the direction of the flow of load current. And instructions (Only red energy impulse signal when working,If no green instructions power supply, that is meaning the direction of the flow of load current reverse).
Single direction measurement single phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21.
Directly connect and use, there are two types wiring you may select. Standard configuration type S connection.May select type U connection(Product Configuration code is US).
Extension terminals cover, in order to protect to use safety.
Technical parameters
Model
Accuracy
Reference Voltage
Current specifications(A)
Starting current(A)
Insulation
performance
YEM015SS
Class1.0
127V,230V
5(30)A
0.02A
AC voltage 4KV for 1 minute,1.2/50us waveform impulse voltage 6KV

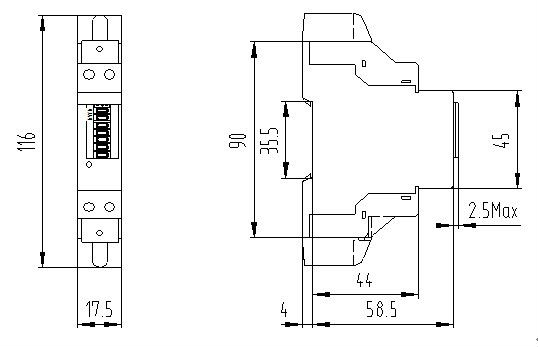

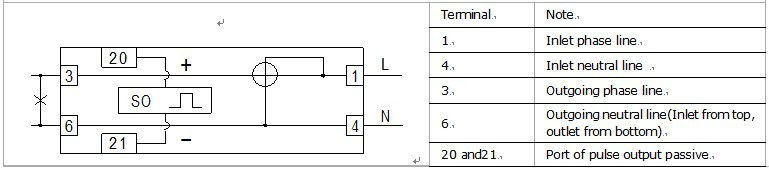

Dimension and wiring
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
Single phase mini din rail kwh meter active energy meter Images
