Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

Product Categories

Yueqing Yomin Electric Co., Ltd

Contact Now

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

Name: Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Brand: YOMIN
Price: 6.37 USD

Buy cheap Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter product

Place of Origin : Zhejiang, China

Brand Name : YOMIN

Model Number : YEM011JC-N

Display Type : Digital Only

Phase : Single Phase

Measuring Energy Range : 5(100)A

Accuracy Class : 1

Output Voltage : 220 V

Operating Temperature : -20℃~+70℃

Dimensions : 88x75x73mm

Material : PC (Poly Carbonate)

Usage : Active Electric Energy Measurement

Display Mode : LCD 6+1

Connection Mode : Directly Connection/CT/CT&PT

Color : White

Style : Customized design

Logo : Laser Engrave or Print

Feature : Good Reliability

Certificate : ISO9001, CE, Rosh

Advantage : Customized size

Packaging Details : Conventional export packing.The outer package is covered with bubble wrap. Please state the voltage and frequency you need for the order.For instance:220V/50HZ

Price : $6.37/Pieces 1-9 Pieces

Contact Now

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

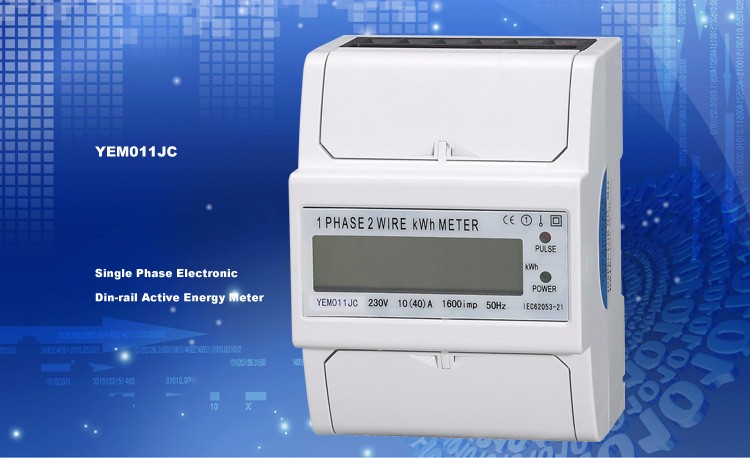

Model YEM011JC single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique,and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight,specious nice appearance, convenient installation, etc.

Technical Parameters

Model	Accuracy	Frequency	Size	Material
YEM011JC-N	1.0	50-60HZ	88x75x73mm	PC
Reference Voltage(V)	Current Specification(A)	Staring Current(A)	Display Mode	Insulation Performence
127 V , 230 V	5(30)A ,10(50)A, 20(100)A	0.02A, 0.04A,0.08A	LCD 6+1/5+2	AC voltage 4kv for 1 minute, 1.2/50us wavefrom impulse voltage 6kv

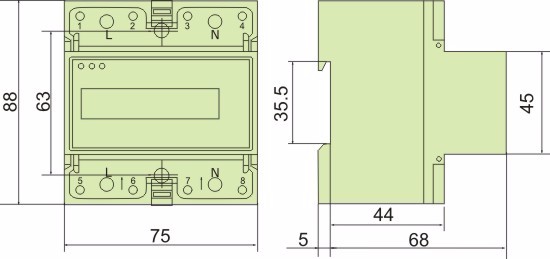

Dimension

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

single phase 1P

No Mudbus

single phase 2P

Mudbus

single phase 4P

Mudbus

three phase

Mudbus
